Case fabricated at Khai Nguyen Dental Lab to the treating dentist’s prescription, presented in our laboratory brochure. No patient-identifying information is included.
Case summary
| Indication | Fixed full-arch upper restoration, screw-retained on six implants (All-on-6) |
|---|---|
| Implant system | AnyRidge (Megagen) |
| Design | FP1: replaces the crowns only, no pink gingiva |
| Workflow | Immediate loading with a provisional; final impressions and definitive prosthesis at Khai Nguyen |
Background
The patient, a Vietnamese American who travels between Vietnam and the US for work, had previous dental treatment, but complications began to appear around October 2023. After clinical evaluation and consultation, he opted for a full-arch upper restoration on six implants for long-term function and improved esthetics.
Treatment plan
- The dentist selected the AnyRidge implant system by Megagen.
- After implant placement the patient was immediately loaded with a provisional restoration before returning to the US.
- In October 2024 the patient returned to Vietnam for final impressions and the esthetic restoration.

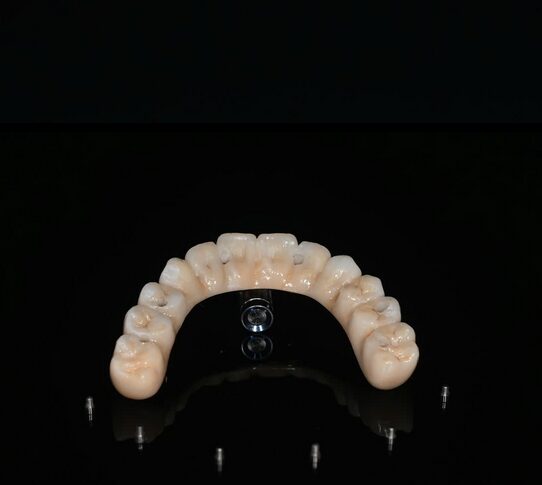

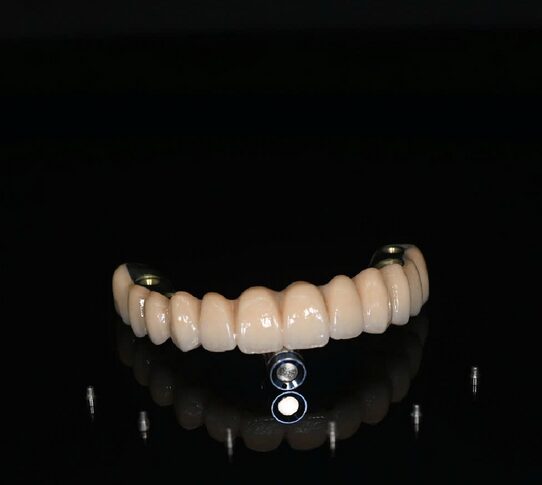

- The case was completed with a full-arch FP1 prosthesis on six implants, without gingiva, fabricated by Khai Nguyen Dental Lab.
Why FP1 is the harder option
An FP1 prosthesis replaces only the crowns, with no pink porcelain to hide the cervical area, so the cervical contours, embrasures and implant positions must match the patient’s own gingiva. It suits cases where bone and soft tissue allow normal crown length; with greater tissue loss, the prosthesis needs pink gingiva. For a patient living abroad, appointments are few and far apart, so the data sent to the lab at the final impression has to be complete the first time.
Takeaways
- Send everything at once: scan bodies on every implant, the bite, smile photos and photos of the accepted provisional.
- Use the provisional as the blueprint for tooth shape and length in the definitive prosthesis.
- Choose FP1 or pink gingiva by the remaining tissue, not by esthetic preference.
See also implant bridges and crowns, All-on-4 FP1: the polished tissue surface, or contact Khai Nguyen.
Written for dentists and technicians. Khai Nguyen Dental Lab manufactures to clinical prescription only and does not sell directly to patients.
